Equilator Set "Mint Beauty" - The inhaler for horses

P3D-Health

Equilator Set "Black Beauty"

€323,99 €359,99

In stock

The Equilator is a sophisticated inhalation device for horses that has been specially developed to support the natural self-cleaning function and to promote well-being when the horse's lungs are exposed to dust or allergens. Made from sustainable bioplastics, it promotes your horse's breathing and well-being.

An outstanding feature of the Equilator is its portability and ease of use. The device is lightweight and can easily be used in the stable or on the move. It is powered by a commercially available power bank, which offers additional flexibility and mobility. This enables uncomplicated treatment of horses, regardless of the availability of a fixed power source.

The inhaler can be filled with liquids that are nebulized using ultrasound and a piezo mesh. This allows the liquid to reach the horse's airways directly, ensuring optimum distribution of the inhalant.

The physiologically optimized design of the equilator ensures even and gentle inhalation, which is particularly important for the horses' sensitive lungs.

To keep the nebulizer as small, mobile and energy-efficient as possible, we use a piezo-operated mesh nebulizer with a 5 µm hole size. Therefore, as with all products based on this technology, the nebulizer is a consumable item. The nebulizer is designed for approximately 90 applications of 10 ml NaCl 0.9 % solution and up to 3 months after the first use. The use of other inhalants can significantly shorten the service life of the nebulizer. A replacement nebulizer plate is available from us.

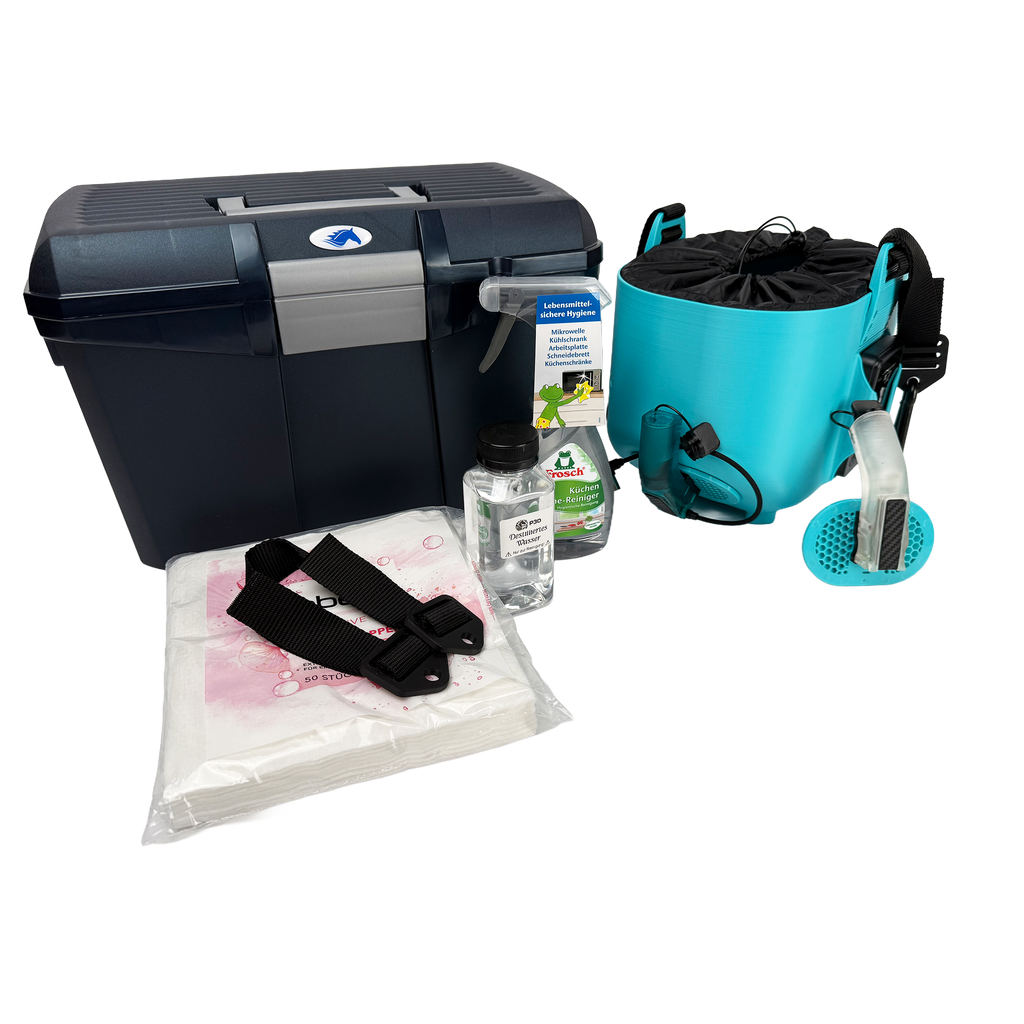

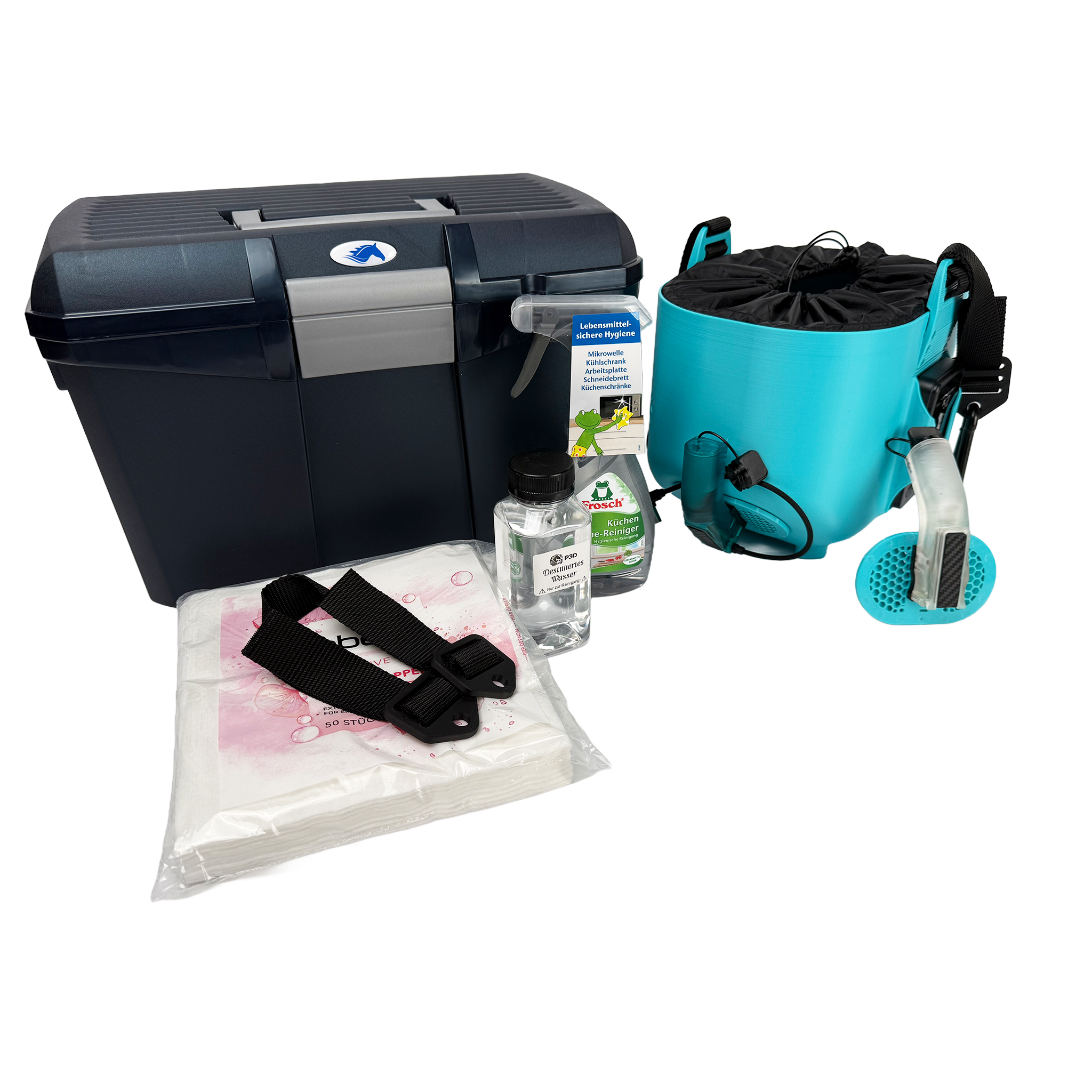

Scope of delivery

The Equilator Set contains everything you need for inhalation and care of the inhaler:

1x Equilator -> The main device for effective inhalation for your horse.
2x Nebulizer (outside) → The attachment for nebulizing the inhalation solution.
1x USB cable -> For connecting the nebulizer to the power bank.
1x power bank -> To supply the Equilator with power.
1x Neck strap -> To attach the Equilator.
1x strap system -> For attaching the equilator to the halter.
1x Frosch hygiene cleaner -> For cleaning the mask body.
1x Ebelin disposable washcloth -> To clean the mask body and nebulizer.
1x Distilled water -> To clean the nebulizer.
1x Storage box -> For storing the Equilator and accessories.

Technical data

Membrane hole diameter: approx. 5 µm
Quantity: 15 ml
Nebulization rate: approx. 0.5 - 1.8 ml/min (8 - 25 min nebulization time with 10 ml 0.9% NaCl solution, the use of other inhalation solutions can lead to significantly different nebulization rates)
Connection: USB-C
Voltage: 5V
Working current: 330 mA
Standby current: 20 mA
Frequency: 108 kHz
Shelf life: The nebulizer is designed for approximately 90 applications of 10 ml NaCl 0.9 % solution and up to 3 months after the first use. The use of other inhalants can significantly shorten the service life of the nebulizer.

Capacity: 5000 mAh
Interfaces: USB-A, USB-C, QI
Output power: max. 22.5 W

Polylactide
polycarbonate
Liqcreate Bio-Med Clear
Thermoplastic elastomer

Equilator weight

Equilator: 1.00 kg
Total equilator set: 3.15 kg
Shipping weight: 3.5 kg

Dimensions

Mask opening: 23 x 16 cm
Inner circumference: max. 64 cm

Please do not expose the product to temperatures below 4 °C and above 50 °C.

Care

Please clean the Equilator after each use according to the operating instructions and always keep all parts dry in the box.

Before cleaning, remove the valve cap, the valve closing element and the nebulizer. Wipe all parts carefully with a clean, slightly damp, lint-free cloth. Do not use any aggressive cleaning agents or abrasive cleaners. Dry all components completely.

The nebulizer may only be reattached after all parts have been completely cleaned and dried. It may only be stored when completely dry to avoid damage caused by moisture.

After cleaning or use, ensure that no residues of inhalation solutions or other saline substances remain on the device or penetrate the housing. Such residues can lead to corrosion.

Corrosion damage caused by saline solutions or damp storage conditions is not covered by the warranty.

The mesh plate may be carefully cleaned with a suitable hygienic cleaner and a soft disposable cloth. After the inhalation unit, the tube should be completely filled with distilled water. Then nebulize about two thirds of the water and wipe the mesh platelet with the cloth sprayed with hygiene cleaner. The remaining contents must be poured out completely to remove any residue of the inhalation solution.

The nebulizer must be completely cleaned and dried after each use. Only then may it be reattached to the device or stored.

To prevent dirt or salty moisture from entering the connection area, the USB cable should not be disconnected from the nebulizer if possible. Instead, it is recommended to disconnect the cable from the power bank if the device is to be disconnected from the power supply.
